1. Introduction

Optimizing metal building energy efficiency is the activity of maximizing energy utilization while keeping occupant comfort and building performance levels constant and enhancing or maintaining them. It involves implementing design strategies, technologies, and operation practices that minimize energy use for heating, cooling, lighting, and other building systems without compromise in performance.

For South Africa, maximizing energy efficiency in metal structures has been of growing significance due to a number of primary reasons. The country remains faced with acute power supply problems, with Eskom's ongoing load shedding timetable impacting business and industrial activities throughout the nation. South Africa experienced over 1,800 hours of load shedding in 2023, the longest power cut sequence in the country's history, according to the Council for Scientific and Industrial Research (CSIR) (CSIR Energy Centre, 2024). Electricity rates have risen by approximately 14.5% annually for the past five years, significantly exceeding inflation and adding to increased operating expenses for building owners.

Beyond economic considerations in the short term, South Africa's commitment to reducing carbon emissions under the Paris Agreement means more energy-efficient construction methods are needed. South Africa has committed to reducing emissions by 42% by 2025 and has identified energy efficiency in buildings as a significant way of achieving those targets (Department of Energy, 2023). Metal buildings, accounting for approximately 65% of new industrial construction in South Africa, represent a significant sector where energy-saving interventions can be introduced.

2. Practical Strategies

Insulation Methods and Materials

Successful insulation is perhaps the most crucial factor for improving the energy efficiency of metal structures. Steel has a high thermal conductivity—about 1,000 times that of common insulation materials—and consequently, metal buildings without insulation are extremely vulnerable to heat transfer.

Some efficient insulation techniques for metal structures in South Africa include:

• Reflective Insulation Systems: These systems, typically including reflective foils, function very well in South African climatic conditions. These systems have the ability to reduce radiant heat gain by up to 97% when properly installed in roof systems. SANEDI research indicates that reflective roof insulation can reduce cooling energy consumption by 25-35% in commercial buildings (SANEDI, 2023).
• Rigid Board Insulation: Polyisocyanurate (PIR) and extruded polystyrene (XPS) boards have a high thermal resistance (R-values ranging from 5.6 to 8 per inch) and can be used on the external face of metal wall cladding or between girts and purlins in roof structures. Local South African production is now available in the form of these products, reducing embodied carbon from transport.
• Spray Foam Insulation: Closed-cell polyurethane spray foam offers superior air sealing capability along with high R-values (approximately 6.5 per inch). It is particularly valuable for retrofit, as it is capable of sealing holes and filling gaps with a complete layer of insulation, reducing air infiltration by up to 90% compared to standard insulation techniques.
• Correct Handling of Thermal Bridges: Metal screws, purlins, and girts generate thermal bridges which reduce the efficacy of insulation to half. Thermal breaks made using materials like nylon spacers or thermally broken brackets can reduce heat transfer via these components by 65-80%.

A general insulation scheme for a South African metal building must be at least 3.7 m²K/W for roofs and 2.2 m²K/W for walls to satisfy SANS 10400-XA standards, though better ratings of 5.0 m²K/W for roofs and 3.3 m²K/W for walls are best for optimal efficiency.

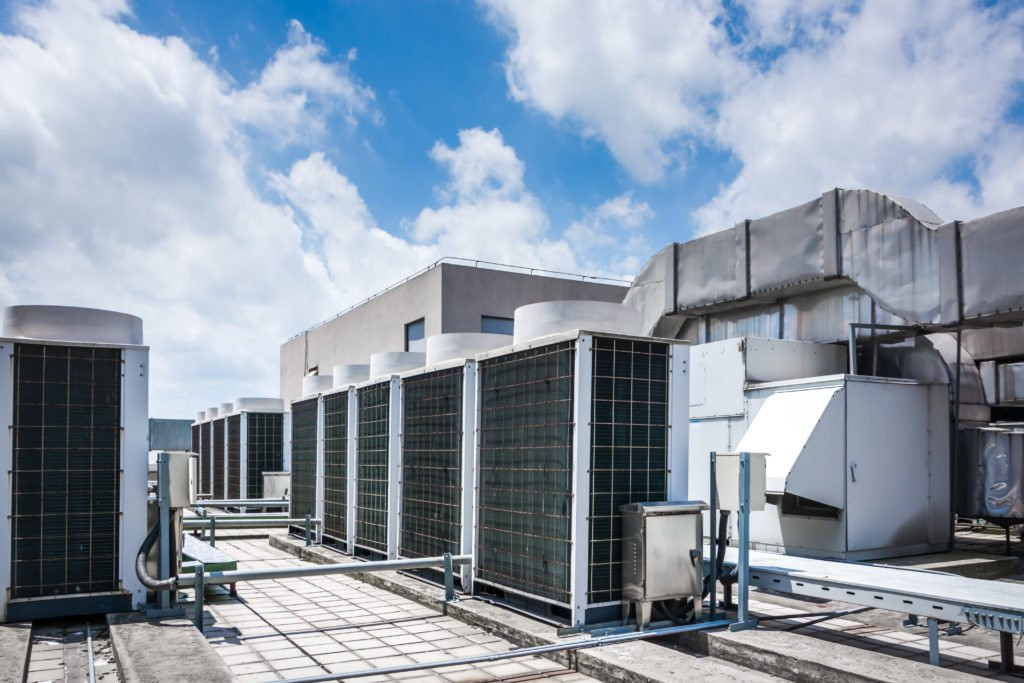

Energy-Efficient HVAC Systems

HVAC systems typically account for 40-60% of the total energy consumption in South African commercial metal buildings. There are several techniques through which this energy requirement can be reduced significantly:

• Variable Refrigerant Flow (VRF) Systems: VRF systems are gaining traction in South African commercial buildings as they can provide zoned comfort at 30-40% lower energy than conventional systems. VRF systems particularly suit metal buildings with various zones or variable occupancy patterns.
• Evaporative Cooling: In South Africa's dry regions (e.g., Gauteng, Free State, and Northern Cape), indirect evaporative cooling systems provide comfort cooling with energy savings of up to 70% compared to conventional air conditioning. They work by evaporating water to cool the air without adding humidity to the conditioned space.
• Heat Recovery Ventilators (HRVs): HRVs recover up to 85% of exhaust air energy, saving a lot of money on the energy needed to condition fresh air introduced into the building. This is particularly beneficial in well-insulated, well-sealed metal buildings where ventilation is required for indoor air quality.
• Right Sizing and Zoning: The majority of HVAC systems in metal buildings are oversized, leading to short-cycling and inefficient running. Correct load calculations based on SANS 10400-XA should be performed to determine the correct system sizing. Segmentation of the building into zones with separate temperature controls can reduce energy use by 20-30% by avoiding conditioning of vacant spaces.

These studies have shown that the implementation of these HVAC optimization practices in metal buildings can achieve energy saving of 35-50% compared to conventional systems, with the payback period typically between 2-5 years depending on the particular steps followed (Energy Research Centre, 2023).

Renewable Energy Integration

The abundant solar resources of South Africa render the integration of renewable energy particularly viable for metal buildings:

• Solar PV Rooftop Systems: Metal roofs provide the ideal substrate for solar photovoltaic systems. Thin-film solar technology can be mounted directly on standing seam metal roofs, and crystalline panels can be clamped on using specialized clamps that do not cut into the roof membrane. Commercial South African buildings, SAPVIA (South African Photovoltaic Industry Association) reports, can reduce their electricity consumption by 30-60% with optimally sized rooftop solar installations.
• Solar Thermal Systems: For buildings with large hot water demands (e.g., food processing facilities, gymnasiums), solar thermal collectors mounted on the roof can conserve 60-80% of water heating energy. These systems are particularly effective in the Western Cape and Northern Cape provinces, where solar radiation intensities are greater than 2,000 kWh/m² annually.
• Building-Integrated Wind Energy: Less common than solar, smaller wind turbines are included in the metal building construction by the sea or where consistent winds pass through. Case histories throughout the Western Cape show building-integrated wind turbines can create 15-20% of a building's electrical need in instances where circumstances permit.
• Energy Storage: Battery storage systems, while still representing a significant investment, have become increasingly viable with prices dropping by approximately 85% over the past decade. A properly sized battery system can allow a metal building to utilize stored solar energy during evening hours or load shedding periods, significantly enhancing energy resilience.

The economic case for renewable power in South African metal buildings has grown significantly, with commercial solar PV installations' average payback periods now at 4-7 years compared to 8-12 years a decade ago (GreenCape, 2023). Furthermore, recent regulatory changes allowing wheeling of electricity and increased ceilings on self-generation have provided additional opportunities for metal building owners to derive optimal returns from renewable energy investments.

Effective Lighting Solutions

Lighting can account for 20-30% of the electricity load in typical commercial and industrial metal buildings. Emerging lighting technologies offer huge efficiency improvements:

• LED Lighting: The replacement of traditional metal halide or fluorescent luminaires with LEDs can reduce lighting energy consumption by 50-75%. Second-generation LED fixtures, dedicated for use in high-bay applications in metal structures, have better light distribution, improved color rendering indices, and longer life (50,000+ hours compared to 15,000-20,000 hours for metal halides).
• Daylighting: Effective daylighting design using clerestory windows, skylights, or translucent wall panels can reduce artificial lighting usage during daylight. Prismatic skylights specially designed for metal roofs can provide evenly distributed natural light with no heat gain or leak points. A study by Sustainable Energy Africa indicates that effective daylighting in industrial buildings is able to save 40-60% of lighting energy consumption in South Africa.
• Lighting Controls: Timed dimming, daylight harvesting systems, and occupancy sensors can reduce lighting energy use by another 20-30%. Networked lighting control systems provide zone-level control and data collection for optimizing lighting energy use over time.
• Task-Ambient Lighting Design: Rather than uniformly illuminating whole spaces to the same level, task-ambient lighting provides higher light levels only where needed for specific tasks, reducing overall lighting power density by 15-40%.

Overall metal building lighting improvements, the South African National Energy Development Institute indicates, typically come with paybacks of 1-3 years and are consequently among the most cost-effective energy efficiency improvements available (SANEDI, 2022).

Smart Building Technologies

Metal building design and IoT technologies have made great strides, and the potential to reduce energy consumption is enormous:

• Building Management Systems (BMS): Modern BMS systems can incorporate control of HVAC, lighting, and other building equipment and provide real-time monitoring of energy. Johannesburg and Cape Town commercial installations are some of the examples where case studies indicate 15-25% energy savings with the application of BMS systems in medium and large metal buildings.
• Smart Meters and Submetering: Accurate and detailed data from smart meters and submeters allow building management to identify areas of inefficiency and manage operation more effectively. The ability to measure energy consumption by system or department allows accountability and determines that efficiency opportunities will be prioritized.
• Demand Response Capabilities: Given South Africa's time-of-use electricity pricing and common supply shortages, demand response technologies are able to load shift energy to off-peak hours or respond automatically by turning off non-priority loads when tariffs are highest. Such systems can cut peak demand charges 10-30%.
• Predictive Maintenance: IoT sensors can monitor equipment performance and alert maintenance staff to impending failures well in advance. This prevents energy loss through inefficient equipment operation and extends system lifecycles.
• Occupancy-Based Controls: Modern occupancy detection systems can adjust diverse building systems (HVAC, lighting, plug loads) according to actual space occupancy rather than pre-programmed schedules, conserving energy in underutilized spaces up to 40%.

Despite incurring initial expense (typically R100-300 per square meter based on scale), smart building technology offers a major return on energy and the smoothing of operations. As identified in research conducted by the Green Building Council South Africa, smart building systems typically conserve overall energy consumption by 20-30% and increase occupant satisfaction and comfort (GBCSA, 2023).

3. Regulations and Standards

South African Energy Efficiency Regulations

The framework governing the policy of energy efficiency in metal buildings in South Africa is primarily ruled by the following frameworks:

• SANS 10400-XA (Energy Use in Buildings): This mandatory standard provides minimum levels of energy efficiency for new construction and major renovations. For metal buildings, it provides requirements for thermal performance (R-values, U-values), fenestration, air leakage, and HVAC system efficiency. The 2021 revision significantly tightened these requirements, with metal buildings now needing to demonstrate compliance through either a prescriptive approach or performance-based modeling.
• SANS 204 (Energy Efficiency in Buildings): While SANS 10400-XA stipulates the minimum obligatory requirements, SANS 204 provides more elaborate guidelines for the best practices of energy-efficient design. It divides South Africa into six climatic zones and suggests appropriate energy efficiency measures for each zone, which is particularly beneficial for metal buildings that are most sensitive to climatic influences.
• Building Energy Performance Certificates (BEPC): Commercial buildings with a net floor area of more than 2,000m² have regulations issued in December 2020 that mandate they exhibit an energy performance certificate. Buildings are graded between A (most efficient) and G (least efficient) based on operational energy consumption. In metal buildings, optimal grades usually entail implementation of a number of efficiency measures addressed in this article.
• National Energy Act and Regulations: It empowers the Minister of Energy to make regulations prescribing energy efficiency standards for various sectors. Few recent regulations in this Act are obligatory energy management plans for industrial plants with metal buildings consuming over 400 MWh annually and minimum energy performance standards for equipment in buildings.

Green Building Certifications

A number of voluntary green building rating schemes are available for metal buildings in South Africa:

• Green Star SA (Green Building Council South Africa): The system evaluates buildings across nine categories, with energy efficiency being one of them. Metal buildings can be Green Star certified through a combination of efficient envelope design, renewable energy integration, and optimized building systems. The "As Built" rating verifies that the building actually built performs to the desired design performance.
• EDGE Certification (Excellence in Design for Greater Efficiencies): The International Finance Corporation (IFC) has created EDGE certification, which is becoming increasingly popular in South Africa because it has a streamlined process and reduced costs for certification. In order to become EDGE certified, metal buildings must prove that they save at least 20% in energy usage, water consumption, and embodied energy from a baseline building.
• Net Zero Certification: GBCSA Net Zero/Net Positive certification determines buildings that are net zero for energy, water, waste, or carbon emissions. For metal buildings, certification as Net Zero Energy is typically realized by combining high-performance building envelope design with local renewable energy generation on site.

According to the Green Building Council of South Africa, green certified buildings (like metal frame buildings) exhibit 30-50% energy savings compared to conventional buildings, and add 15-20% higher asset values with rental premiums of 5-10% (GBCSA, 2023).

4. Case Studies

Case Study 1: Makro Strubens Valley Distribution Center

Project Overview:

• Location: Roodepoort, Gauteng
• Building Type: 15,000m² metal-framed retail distribution center
• Completed: 2021
• 50% reduced energy intensity per comparable facility

Measures Implemented:

1. Building Envelope Optimization:
   • High-insulation metal panel system, wall R-value = 4.2 m²K/W
   • Reflected roof assembly, R-value of 150mm fiberglass = 3.9 m²K/W
   • Low-e glazing office spaces and exterior shading devices
2. HVAC Design Optimization:
   • Indirect evaporative cooling system for warehouse spaces
   • VRF system for office spaces with heat recovery
   • Demand-controlled ventilation using CO2 sensors
3. Renewable Energy:
   • 850kWp rooftop solar PV system producing around 1,380 MWh per annum
   • Solar thermal system for staff facilities and canteen hot water
4. Lighting Systems:
   • LED high-bay lighting with daylight harvesting controls
   • Skylights providing natural illumination with light-diffusing design
   • Occupancy-based control zones
5. Smart Building Integration:
   • Comprehensive BMS monitoring energy consumption across 12 subsystems
   • Automated demand management system to optimize grid consumption during peak periods
   • Real-time energy dashboards for facility management

Results and Benefits:

• 57% energy reduction compared to the company's previous distribution facilities
• 65 kWh/m²/year of energy intensity (compared to industry average of 140-160 kWh/m²/year)
• Solar PV system provides 40% of the total annual electricity requirement, with additional percentages in summer months
• 5-Star Green Star SA rating and EDGE Advanced certification achieved
• Financial payback for all energy saving initiatives of 4.3 years
• Enhanced thermal comfort and productivity among warehouse personnel
• Load shedding robustness through solar + battery backup for core systems

"The integrated method of energy efficiency has not just saved operational expenditure substantially but has also provided excellent relief from business disruption due to load shedding. The enhanced workplace conditions have ensured improved staff morale and reduced absenteeism."

— Facility Manager, Makro Strubens Valley

Case Study 2: Cape Town Film Studios Sound Stage

Project Overview:

• Location: Cape Town, Western Cape
• Building Type: 3,200m² metal-framed sound stage and production facility
• Completed: 2022
• Energy Efficiency Challenge: Meeting stringent acoustic requirements while maintaining energy efficiency

Implemented Strategies:

1. Specialized Insulation Solution:
   • Double-shell metal building design with acoustic insulation
   • Spray foam insulation featuring embedded acoustic barriers with an R-value of 5.0 m²K/W
   • Thermal break systems in every structural joint
2. HVAC Design:
   • Extremely quiet variable speed HVAC system for sound-sensitive uses
   • Advanced digital scroll compressors reducing energy consumption during part loads
   • Custom economizer cycle using cool Atlantic air during appropriate weather
3. Lighting System:
   • Entire LED lighting grid designed specifically for film shoots
   • DMX control system to control lighting energy usage accurately
   • Automated lights hibernation during off-production hours
4. Integration of Renewable Energy:
   • 320kWp solar panel rooftop array with acoustic vibration-reducing mounts
   • 250kWh battery storage facility to provide clean power during noise-sensitive shooting
5. Energy Management System:
   • Autonomous energy management system with production schedule integration
   • Pre-conditioning protocols optimized for shooting schedules
   • Power quality monitoring in real-time to protect sensitive equipment

Results and Benefits:

• 45% reduction in energy consumption compared to similar sound stages globally
• Achieved sound rating of NC-15 (Noise Criterion) with better thermal performance
• Solar PV system generates 35% of annual energy consumption
• Battery system offers 6+ hours of runtime during load shedding periods
• Obtained 4-Star Green Star SA Custom rating
• Reduced HVAC-related noise retakes, conserving energy and production expenses
• Foreign production companies have in fact hired the stage precisely due to its green attributes

"The energy-efficient design is now a competitive advantage in drawing international productions that have sustainability requirements. The energy savings are directly beneficial to our bottom line, but the most significant value is that high-quality power and improved comfort have elevated our position in the industry."

— Director of Sustainability, Cape Town Film Studios

5. Conclusion

Energy efficiency optimization of metal buildings is a significant challenge for South African building owners and operators to solve multiple challenges concurrently: increasing energy costs, shortage of supplies, environmental impact, and regulatory adherence. The strategies outlined in this article—from envelope improvements to renewable energy integration to smart building technology—offer a holistic range of solutions for both new construction and retrofits.

The long-term return on investment in energy efficiency for metal buildings extends far beyond the direct energy savings:

• Financial Returns: Beyond the initial energy cost savings (typically 30-60% depending on what is done), energy-efficient metal buildings gain increased property values, high-end tenants, and lower vacancy rates. The average ROI window for complete energy efficiency improvements has fallen to 3-6 years with rising electricity costs and improved technology pricing.
• Operational Resilience: With South Africa's chronic electricity supply challenges, energy-efficient buildings with embedded generation capability provide critical business continuity benefits. Reduced dependence on grid electricity protects against supply outages and future price increases.
• Regulatory Preparedness: As South Africa develops its energy efficiency legislation further and possibly introduces carbon taxation on buildings, buildings that have already made efficiency investments will avoid costly retrofits and compliance penalties.
• Environmental Leadership: The buildings are responsible for creating about 40% of South Africa's carbon footprint. Metal buildings that adopt energy efficiency do environmental leadership while also helping the country meet its Paris Agreement commitment.
• Occupant Wellbeing: Properly planned energy efficiency measures usually promote indoor environmental quality, for instance, thermal comfort, daylighting, and acoustical performance. That is, higher productivity, fewer absences, and improved occupant satisfaction.

The case studies presented demonstrate that combined energy efficiency strategies can be successfully implemented in a broad variety of metal building types across South Africa, with notable and measurable advantages. As technology continues to improve and awareness of high-performance metal building design grows in the South African building industry, the business case for energy efficiency will grow stronger.

Asset owners and builders alike must see energy efficiency as a value-enhancing investment that supports asset value, optimizes operation performance, and places their assets onto the platform for sustained success in the context of an increasingly energy-savvy and carbon-constrained business climate.

References

• Council for Scientific and Industrial Research (CSIR). (2024). Annual Statistics on South Africa's Power System. Pretoria: CSIR Energy Centre.
• Department of Energy, Republic of South Africa. (2023). National Energy Efficiency Strategy. Pretoria: Government Printer.
• Energy Research Centre, University of Cape Town. (2023). Energy Efficiency Potential in Commercial Buildings in South Africa. Cape Town: UCT Press.
• Green Building Council South Africa (GBCSA). (2023). Rands and Sense of Green Buildings: 2023 Update. Cape Town: GBCSA.
• GreenCape. (2023). Energy Services Market Intelligence Report. Cape Town: GreenCape.
• South African Bureau of Standards. (2021). SANS 10400-XA:2021: The application of the National Building Regulations - Part XA: Energy usage in buildings. Pretoria: SABS Standards Division.
• South African Bureau of Standards. (2018). SANS 204:2018: Energy efficiency in buildings. Pretoria: SABS Standards Division.
• South African National Energy Development Institute (SANEDI). (2023). Energy Efficient Building Materials Market Study. Johannesburg: SANEDI.
• South African National Energy Development Institute (SANEDI). (2022). Commercial Building Energy Performance Benchmarking. Johannesburg: SANEDI.
• South African Photovoltaic Industry Association (SAPVIA). (2023). Solar PV Market Overview: Commercial and Industrial Segment. Johannesburg: SAPVIA.
• Sustainable Energy Africa. (2023). Daylighting Strategies for South African Commercial Buildings. Cape Town: SEA.
